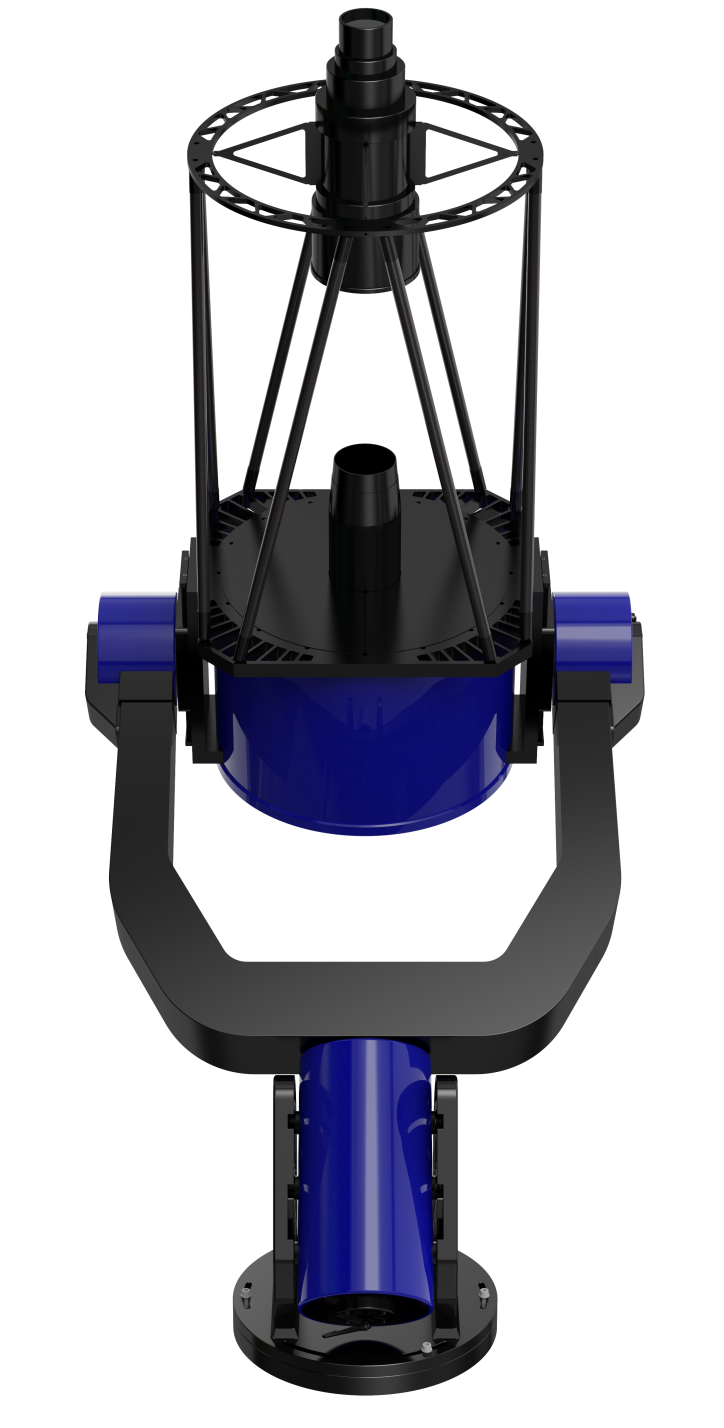

ASTROSIB-PF500 telescope on FMDD-700 mount

ASTROSIB PF500 Telescope

High-speed F/2.8 telescope with a 2° field of view. Survey tasks, astrometry, photometry, astrophotography — all in one instrument.

The ASTROSIB PF500 is based on the RC500 with a substantially redesigned front section: the secondary mirror assembly is replaced by a three-element prime focus corrector. The swap requires no tools but must be done manually and cannot be performed remotely. 8 exoplanets have been discovered using ASTROSIB PF500 telescopes.

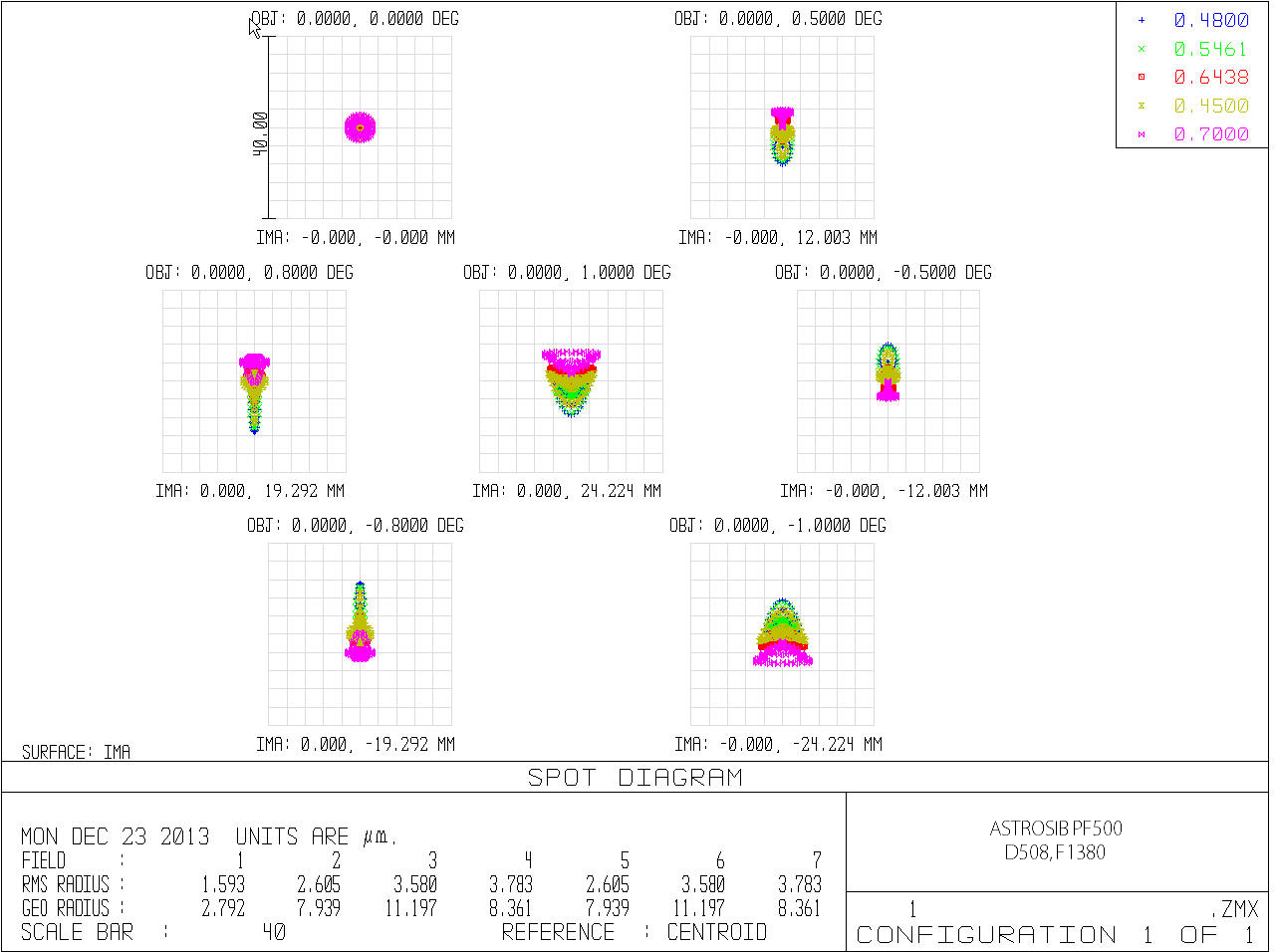

График оптической системы

The optical system is designed for cameras with a sensor size of up to 37×37 mm and a pixel size of 9 µm.

*ASTROSIB telescopes are available for order only in combination with an ASTROSIB mount

Конфигурация ASTROSIB RC400

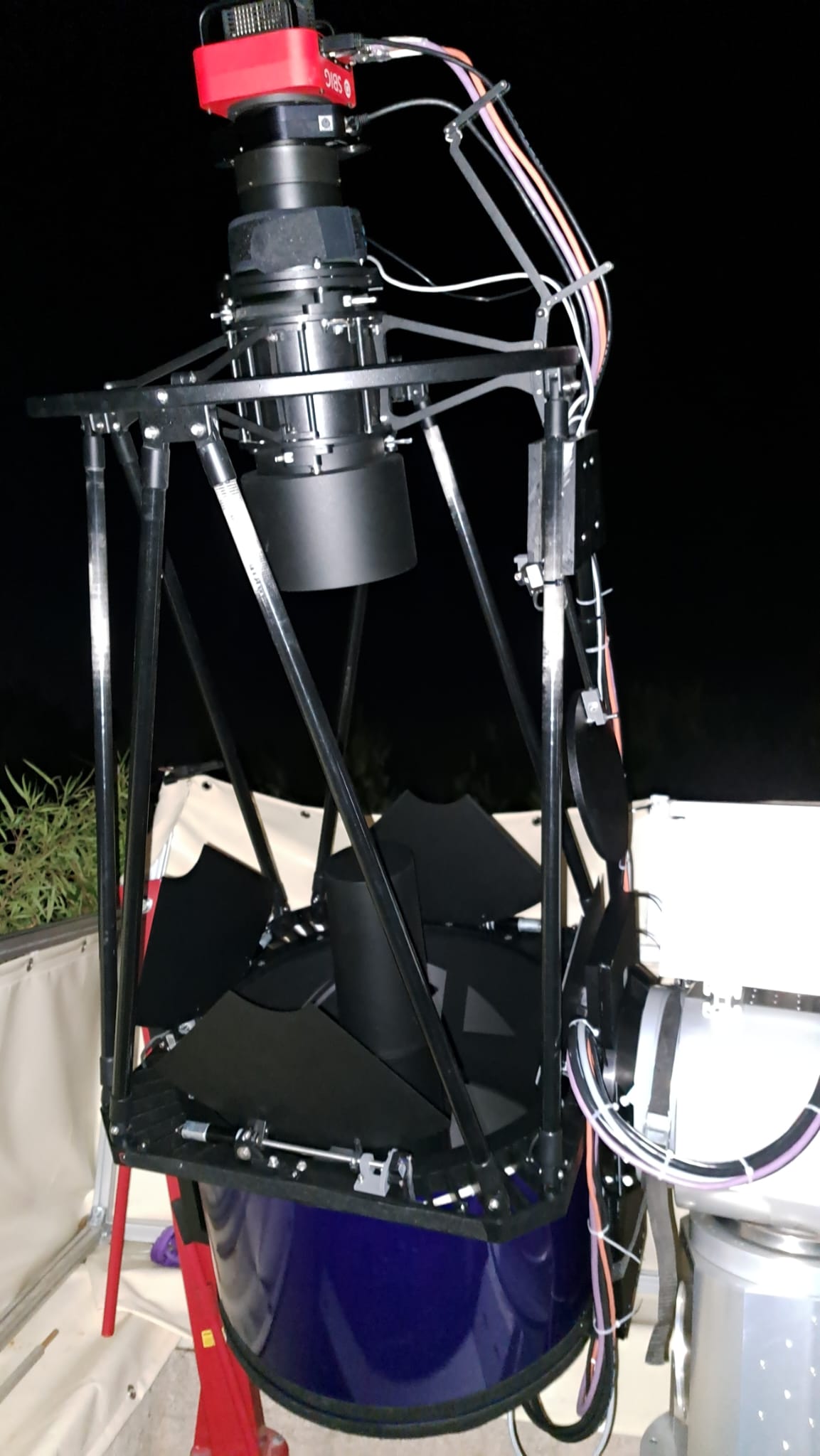

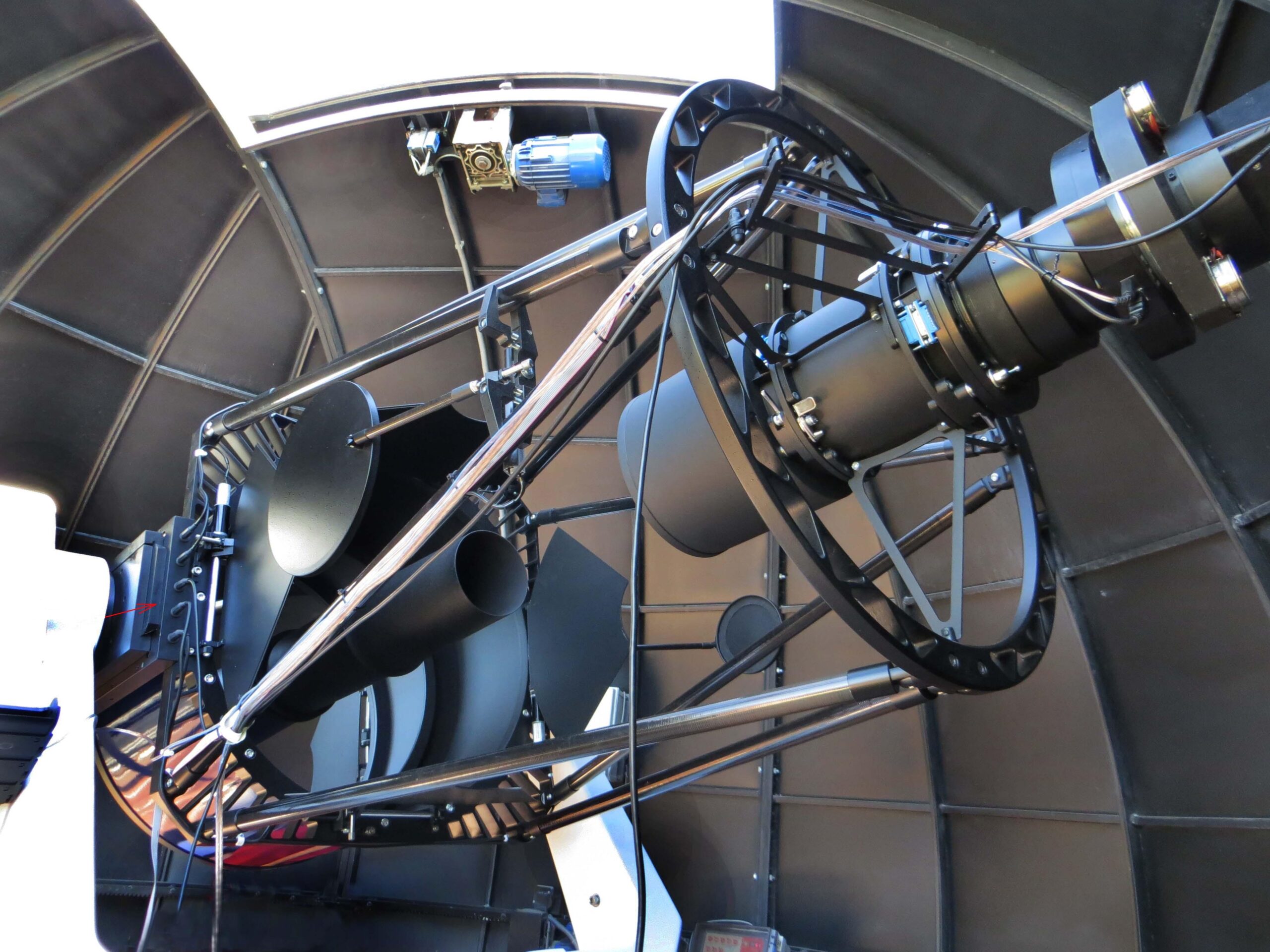

ASTROSIB PF500 in France
× Полноэкранное изображение
Download

The telescope is equipped with:

  • Carbon fiber truss structure minimizing the effects of temperature variation.
  • Climate control.
  • Motorized covers for the primary mirror and the prime focus baffle.
  • High-precision, high-speed pointing to any object on the celestial sphere.
  • High-precision object tracking at sidereal or arbitrary angular velocity. High-resolution optical encoders eliminate the need for autoguiding in most cases.
  • Control of all telescope subsystems from third-party astronomical applications via the ASCOM platform.
✦

ASTROSIB PF500

Category:

Description

ASTROSIB Telescope - Technical Specifications
Parameter Value
Primary mirror diameter500 mm
Primary mirror focal ratioF/3
Corrector first lens diameter132 mm
Equivalent focal ratioF/2.8
Equivalent focal length1380 mm
Back focal distance from last corrector lens60 mm
Distance from mirror vertex to first corrector lens1272.8 mm
Mirror materialLK-7 (optical glass with low thermal expansion coefficient). Sitall optics available on request
Maximum field of view2° (sensor up to 37×37 mm)
Optimal camera pixel size9 µm
Recommended focuserFLI ATLAS (or equivalent)
Recommended filter wheelASTROSIB AFW-2X4-6
AutomationASCOM driver
InterfaceUSB, Ethernet, RS232, RS485
Computer-free operationPresent
Remote controlPresent
Full subsystem automationPresent
Dimensions (without adapters, to focal plane)640 x 688 x 1720 mm
Supply voltage12 V (±10%)
Telescope weight70 kg
ASTROSIB PF
Primary mirror diameter500 mm
Primary mirror focal ratioF/3
Corrector first lens diameter132 mm
Equivalent focal ratioF/2.8
Equivalent focal length1380 mm
Back focal distance from last corrector lens60 mm
Distance from mirror vertex to first corrector lens1272,8 mm
Mirror materialLK-7 (optical glass with low thermal expansion coefficient). Sitall optics available on request
Maximum field of view2° (sensor up to 37×37 mm)
Optimal camera pixel size9 µm
Recommended focuserFLI ATLAS (or equivalent)
Recommended filter wheelASTROSIB AFW-2X4-6
AutomationASCOM driver
InterfaceUSB, Ethernet, RS232, RS485
Computer-free operationPresent
Remote controlPresent
Full subsystem automationPresent
Dimensions (without adapters, to focal plane)640 x 688 x 1720 mm
Supply voltage12 V (±10%)
Telescope weight70 kg
