Description
| Parameter | Value |
|---|---|
| Mounting flange diameter, mm | 95 |
| Filter size, mm | 50 х 50 х 3 |
| Housing diameter, mm | 180 |
| Number of filter positions | 8 |
| Recommended maximum number of filters | 6 |
| Weight, kg | 1.2 |
| Housing material | D16T (duralumin alloy) |
| Required power supply | 12V, 1A |
| Power consumption, W | 10 |
| Control interfaces | USB, Ethernet |
| Operating temperature range | −30°C ÷ +40°C, in a ventilated enclosure protected from rain and snow |

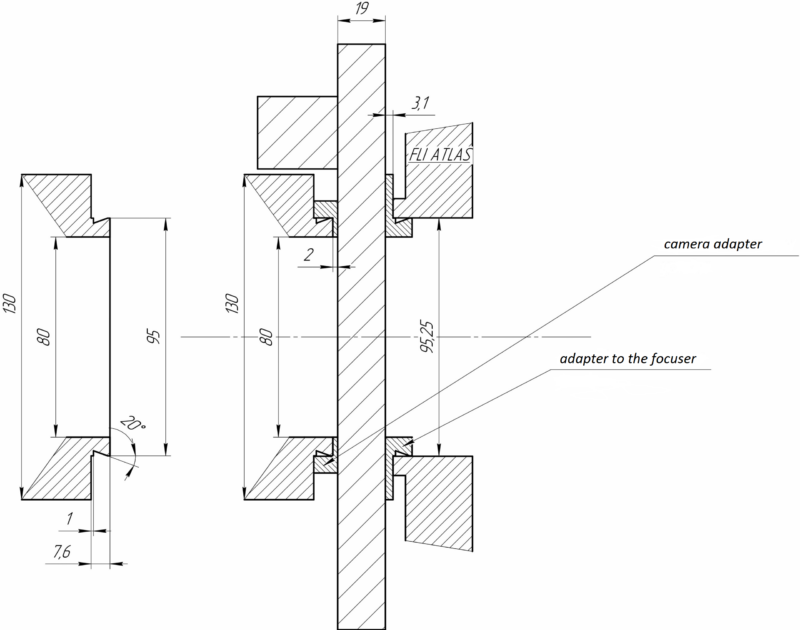

Connecting dimensions
